Schematics for the Catena 4710

Here are the schematics for the 4710. I've omitted the first page of the KiCad schematics, as it only points to the other pages. Right-click>View Image let me see the images in higher resolution; you still may have to zoom in for full visibility.

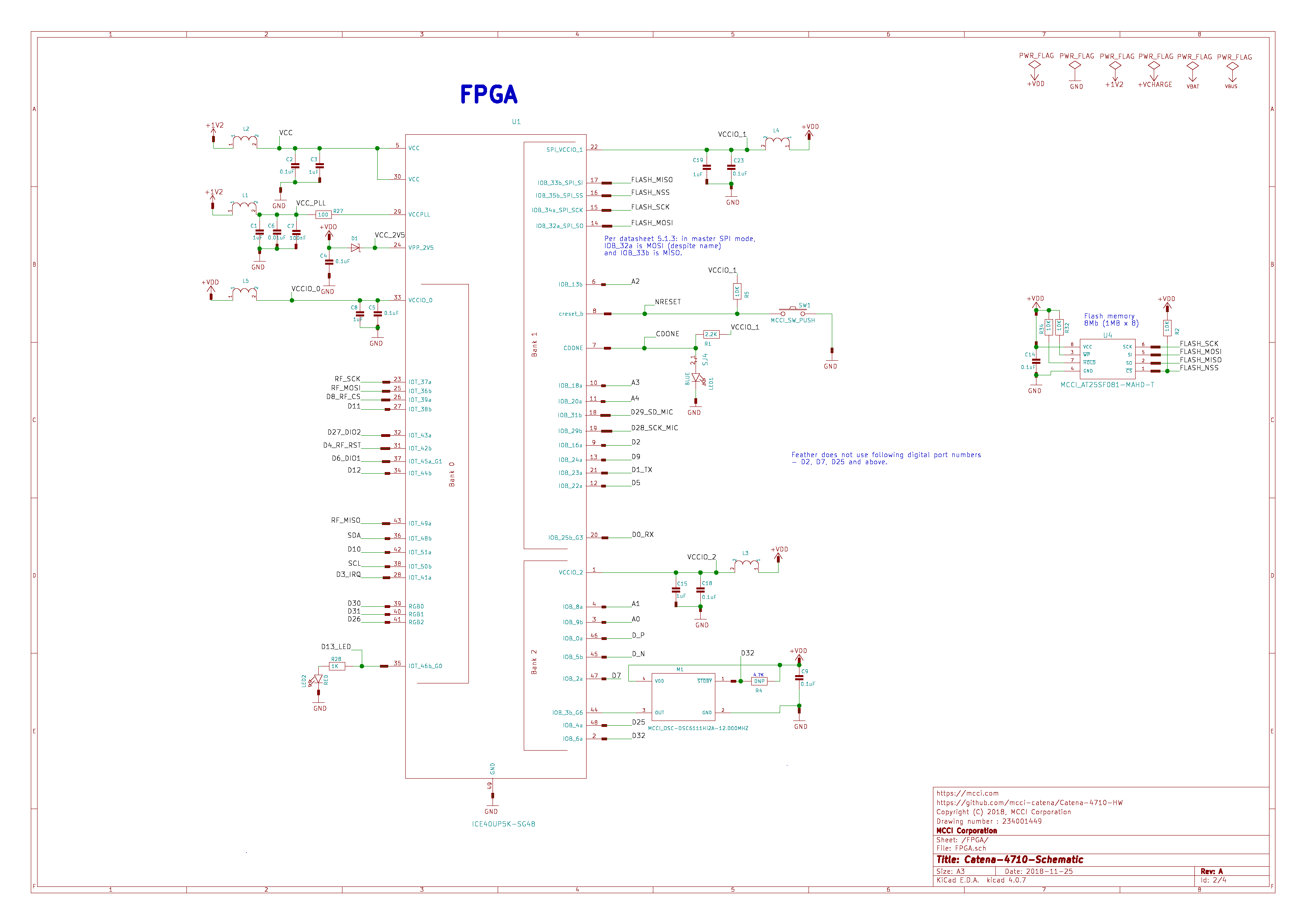

Catena 4710 Schematic Rev A (1 of 3)

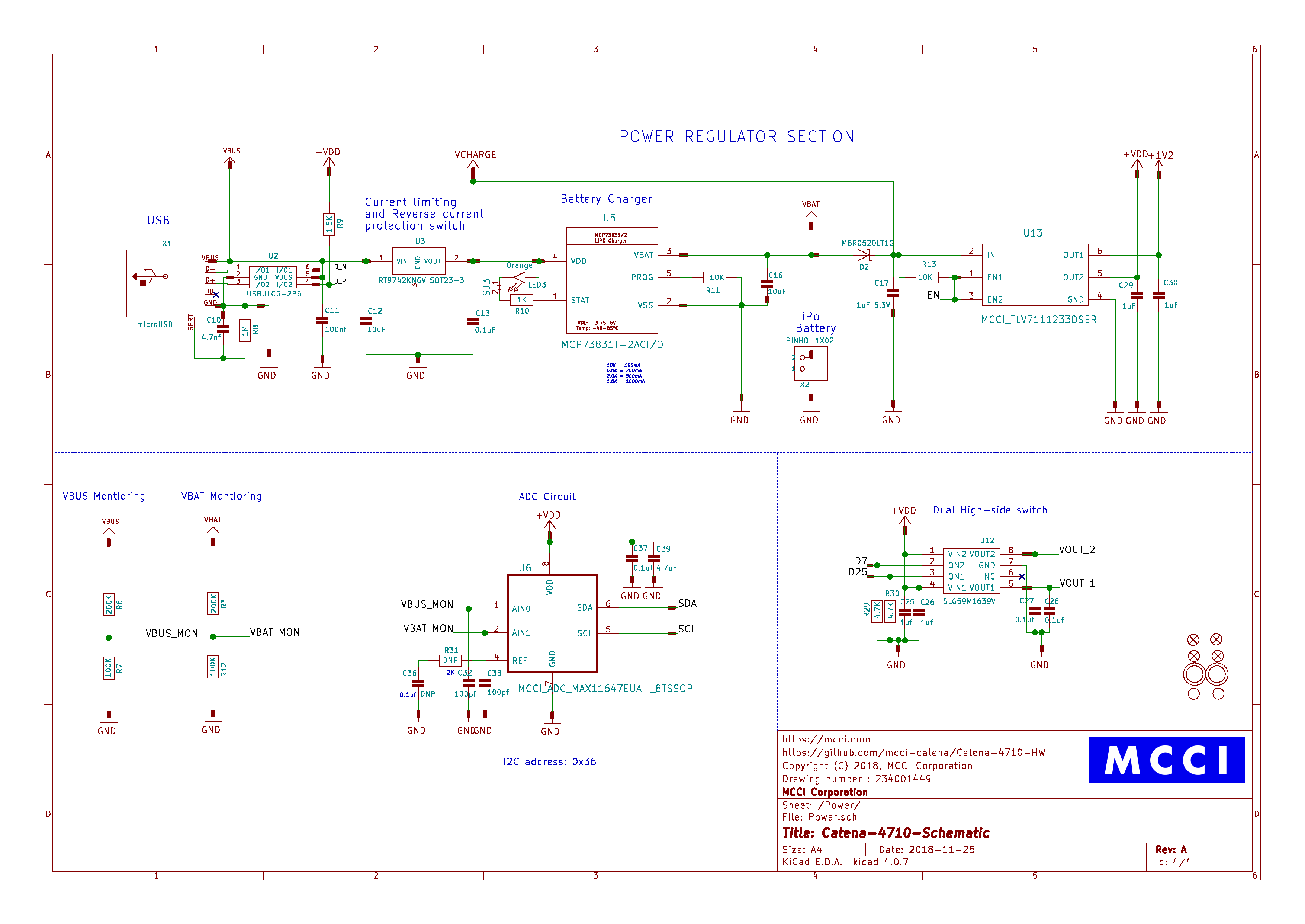

Catena 4710 Schematic Rev A (2 of 3)

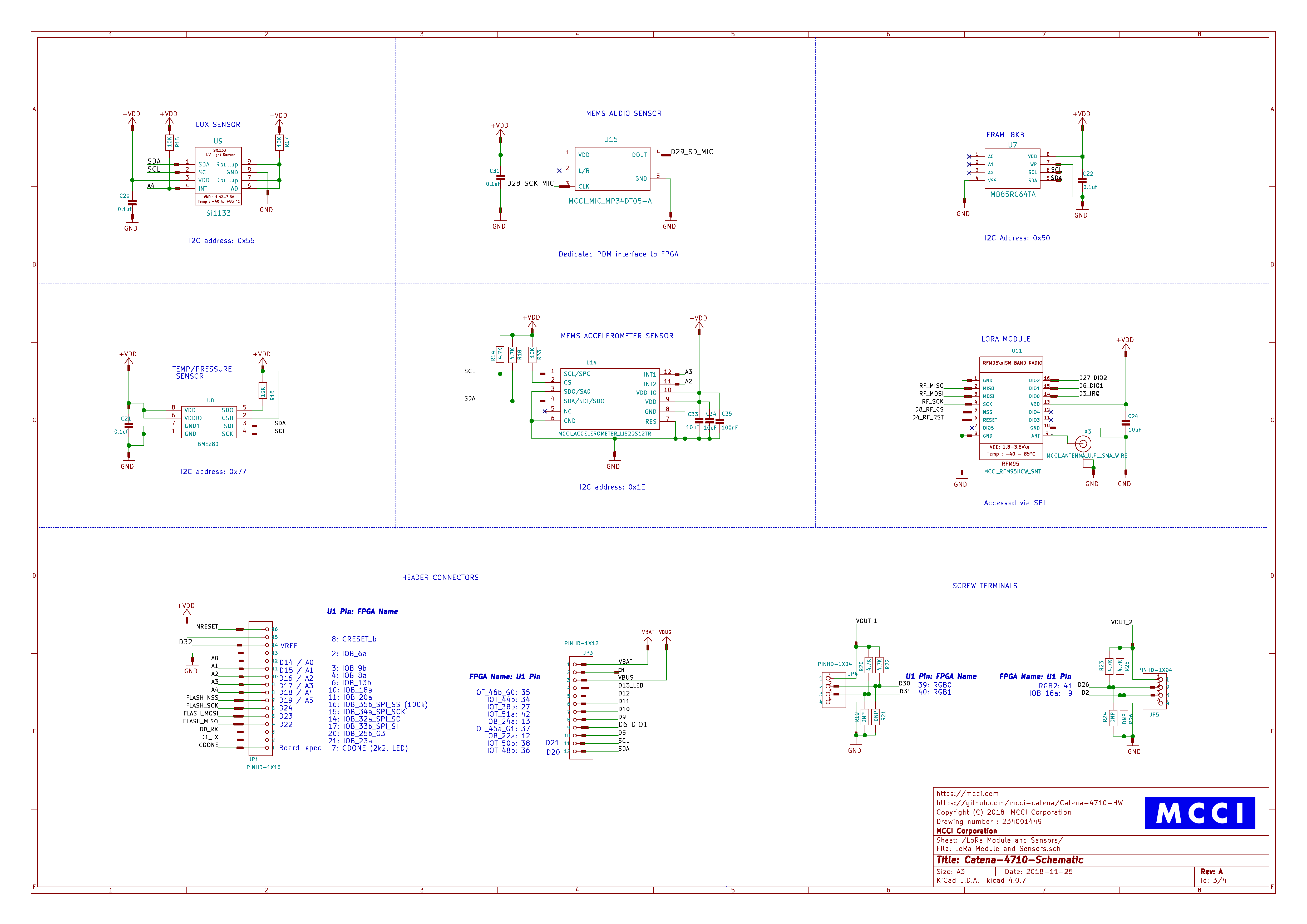

Catena 4710 Schematic Rev A (3 of 3)
